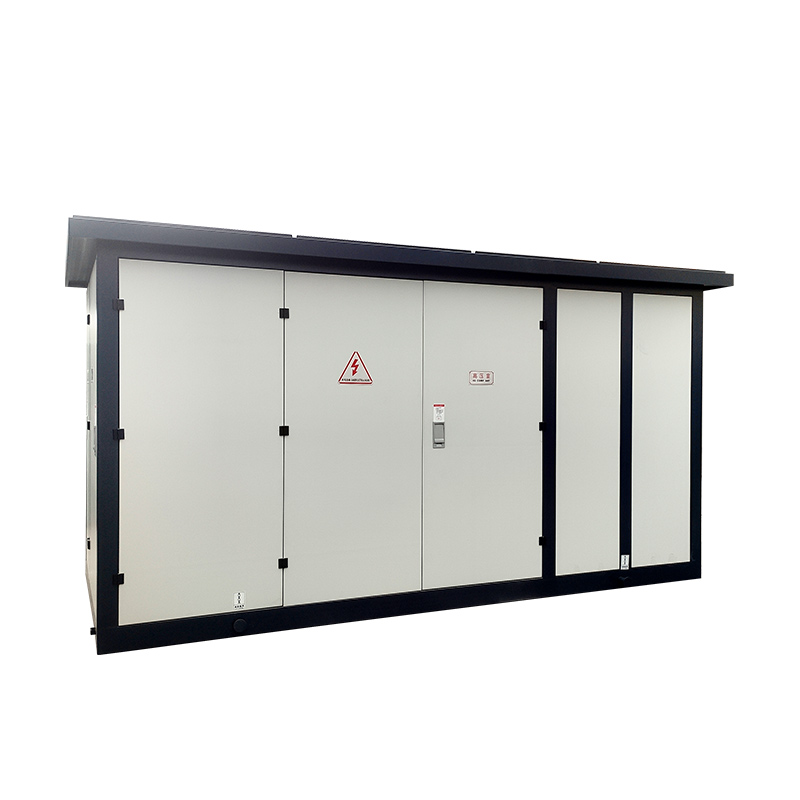

YB Intelligent prefabricated substation
Overview
Intelligent box substation of series YB, the newest product developed independently by ZHIDUOXIN Company integrates the advantagesof American box substation, European box substation and home box substation which adopts environment protection and new material, new technology and advanced components as well as high-low voltage automation technology, and among them, the high voltage side (12KV) can meet the demand of power department for power distribution automation, and the low voltage side (0.4KV) can meet the demand of intelligent community property management, and the upper monitor which is located in the central station or the property management department can be used for four-remote (remote measurement, remote communication remote adjustment, remote control) system management. When several intelligent box substations connect into “hand-in-hand” ring network and supply power, they, combined with autonomous software, can accomplish the functions of automatic location, fault clearance, load shifting and network reconfiguration at the fault section, so that the recovery of power transmission is guaranteed in one minute. This series of intelligent box substation is one optimized combination of complete intelligent power supply and distribution integrated device consisting ofhigh voltage unit, power transformer, low voltage unit, metering unit and intelligent system etc. It has the characteristics of multi-functions, wide application, safe and reliable operation, beautiful out line,as well as convenient installation, little land occupation, little maintenance, low cost, quick effect and long service life. It can be used as power transformation and distribution equipment in the following departments and places, such as urban architecture, residential areas, municipal facilities, factories, mines, roads, wharves and oil fields, as well as construction in need of temporary power supply.

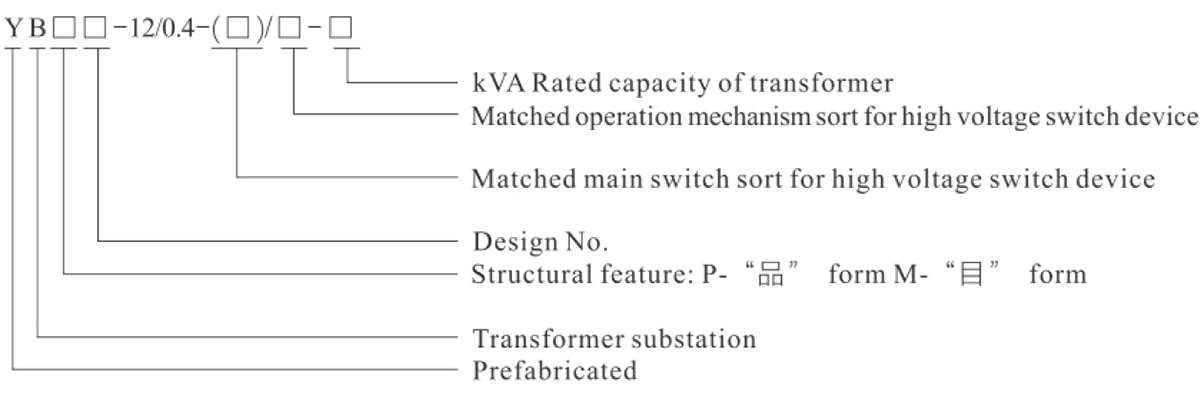

Model and meaning
The main technical parameters
| Item | Unit | High voltage electrical equipment | Transformer | Low voltage electrical equipment |
| Rated voltage | kv | 7.2、12 | 6/0.4、 10/O.4 | 0.4 |
| Rated capacity | kvA | “目”type: 200-1250 | ||
| “品” type: 50~400 | ||||
| Rated current | A | 200~630 | 100~3000 | |
| Rated breaking current | A | Load switch400-630A | 15-63 | |
| kA | Cormbined electrical equipmment is dependent on fuse | |||
Rated short time withstand current | kA(xs) | 20×(2) | 200~400kvA | 15×1 |
| (12.5×4) | 400kvA | 10×1 | ||
Rated peak withstand current | kA | 31.5、50 | 200~400kvA | 30 |
| 400kvA | 63 | |||
| Rated closing current | kA | 31.5、50 | ||
| Line frequency withstand voltage | kv | Phase to earth and phase similar32、40 | Oil immersion: 35/5min | ≤300V：2kv |
| Isolated fracture 34、48 | Dry type: 28/5min | 300,600V：2.5kv | ||
| Thunderstroke impact | kv | Phase to earth and phase similar 60、75 | 75 | |
| Isolated fracture 75、85 | 75 | |||
| Noise level | dB | Oil immcrsion:<s5 | ||
| Dry type:<65 | ||||
| Protection grade | 1P23D | |||
| Outline dimension | Choosc diflerent outline dimension according to the capacity and mode of selected transformer. | |||
Common size
| No. | Box type | (mm)Outline dimension | Structure form | Operation mode |
| One | FIat top type | 3000×1600×2200 | 目-shaped | Single-sided ouldoor operation |
| 3200×220D×2500 | 目-shaped | Single-sided ouldoor operation | ||
| 3700×2300×2500 | 目-shaped | Single-sided ouidoor operation | ||
| 4000×2500×2500 | 目-shaped | Single-sided oudoor operation | ||
| 4300×2500×2500 | 目-shaped | Double-sided corridor operation | ||
| 700×2500×2500 | 目-shaped | Doublc-sided corridor operation | ||
| 5300×2500×2500 | 目-shaped | Doublc-sided corridor operation | ||
| 6300~2500×2700 | 目-shaped | Double-sided corridor operation | ||
| 80D0×2500×2700 | 目-shaped | Double-sided corridor operation | ||
| Two | Fastigium type | 3200×2200×2500 | 目-shaped | Single-sided outdoor operation |
| 3200×2500×2500 | 目-shaped | Single-sided outdoor operation | ||
| 3600×2300×2500 | 品-shaped | Single-sided ouldoor operation | ||
| 4300×2300×2500 | 目-shaped | Double-sided corridor opcration | ||
| 4500×2300×2500 | 目-shaped | Doublc-sided corridor opcration | ||
| Three | Slanted-top type | 3500×2000×2500 | 品-shaped | Single-sided outdoor opcration |
| Four | Half-open type | 2800×1800×2500 | 品-shaped | Single-sided outdoor operation |

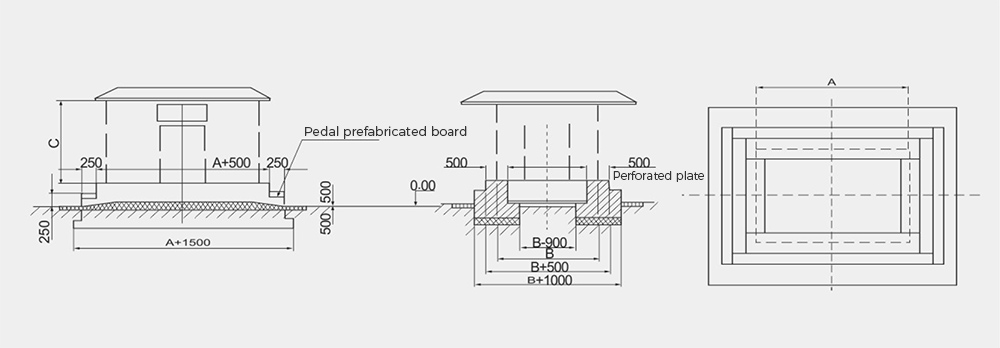

Installation base map
